Maintenance Hole 1500mm Top Treatments

Available at Ayr & Carp

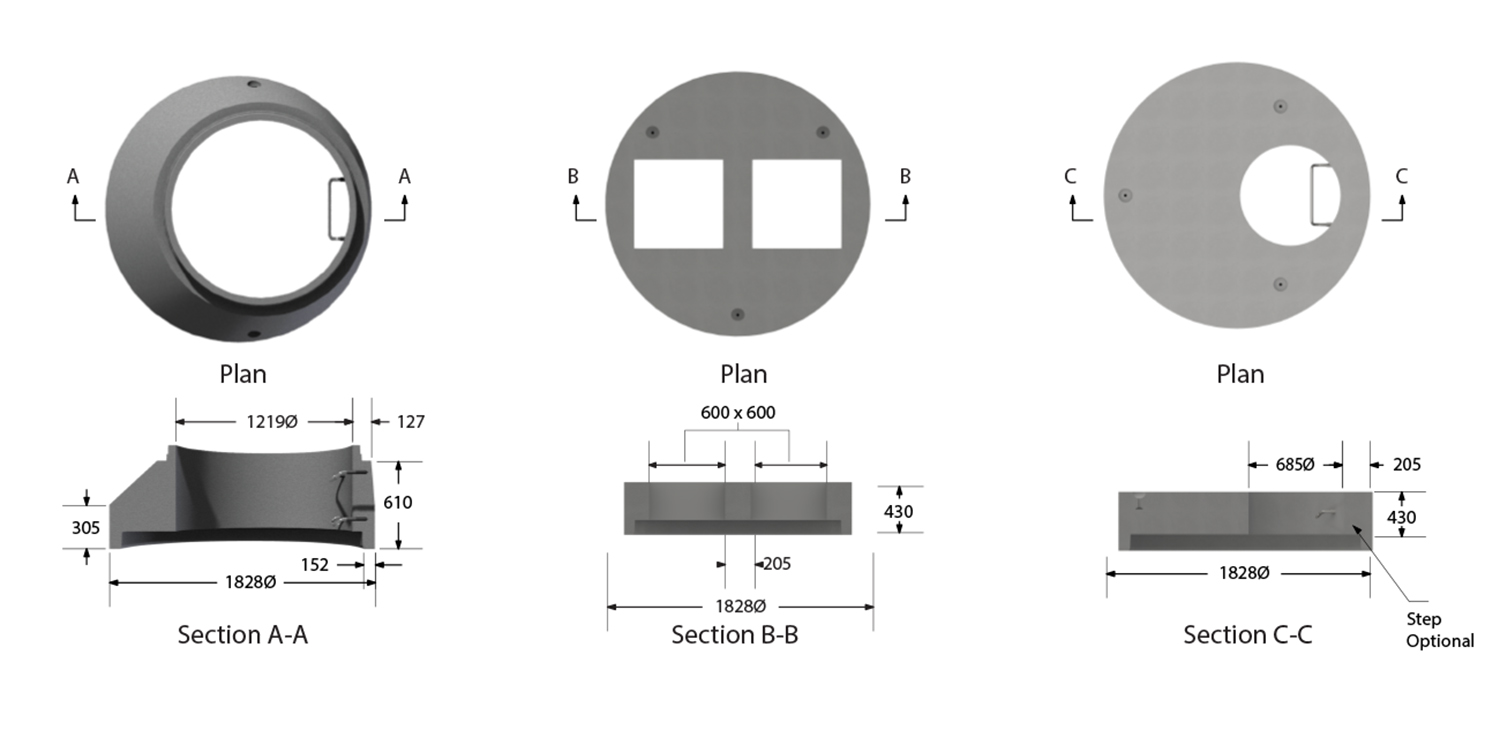

Transition
(Mass – 1633 kg)
Twin Inlet Flat Cap
(Mass – 1600 kg)
Flat Cap
(Mass – 1829 kg)

Notes

  1. Manufactured in accordance with OPSD 701.040 and 703.011 and 703.021.
  2. Maintenance hole steps (circular hollow aluminum) as per OPSD 405.010.
  3. All dimensions are in millimeters unless otherwise shown.

PDF Downloads

Technical Drawing
