Maintenance Hole 2400mm Transition and Top Sections

Available at Ayr & Carp

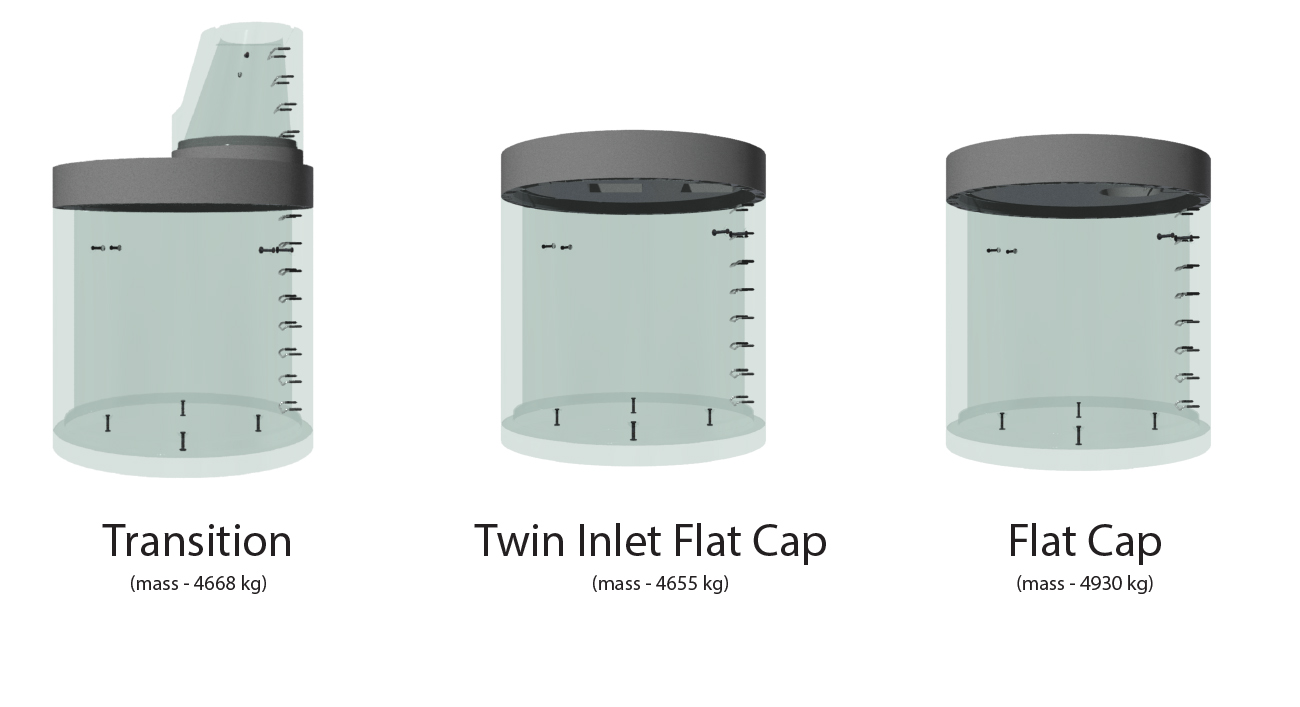

Transition
(Mass – 4668 kg)
Twin Inlet Flat Cap
(Mass – 4655 kg)
Flat Cap
(Mass – 4930 kg)

Notes

  1. Manufactured in accordance with OPSD 701.060 and 703.013, and 703.023.
  2. Maintenance hole steps (circular hollow aluminum) as per OPSD 405.010.

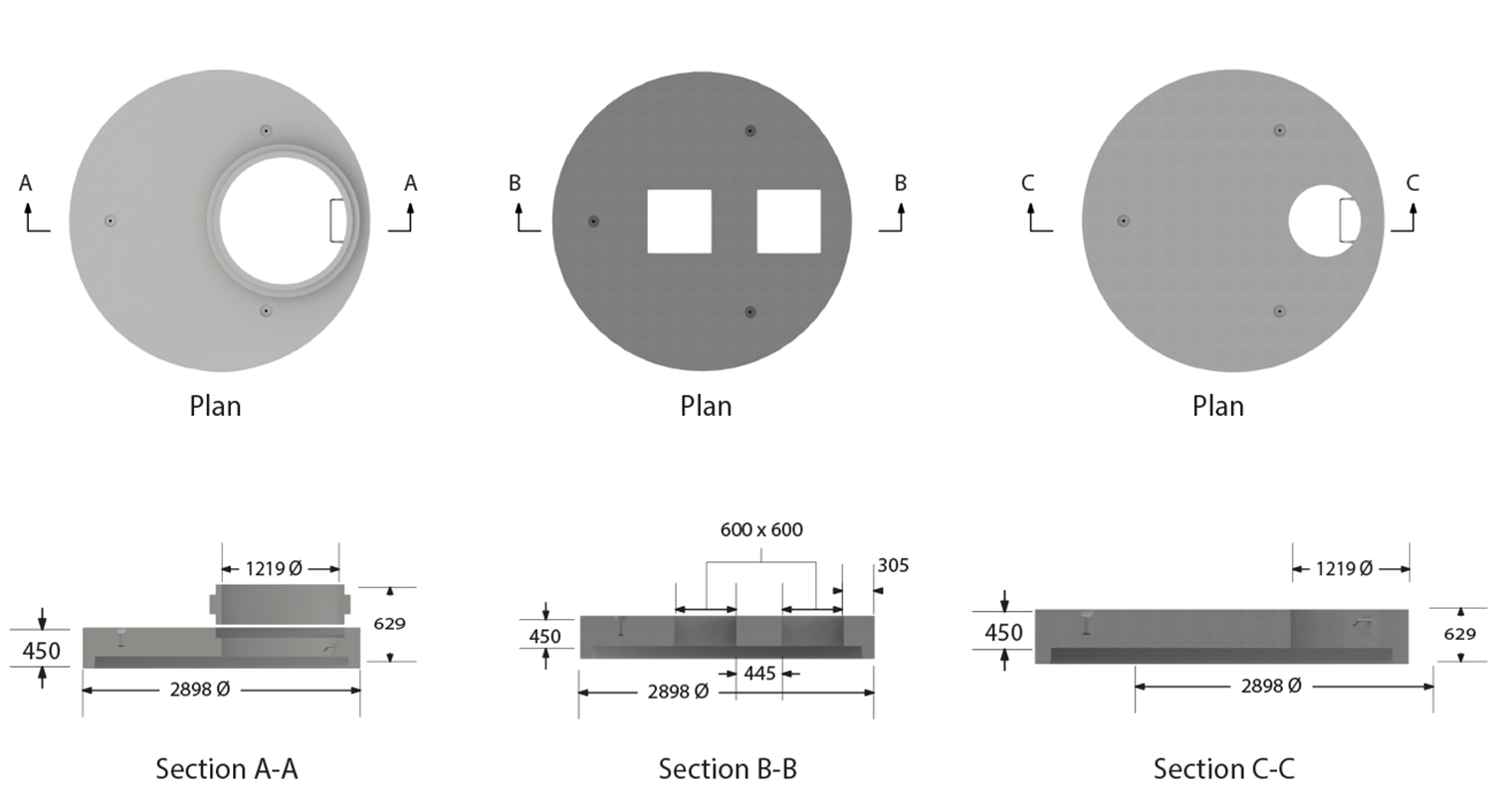

  3. All dimensions are in millimeters unless otherwise shown.

PDF Downloads

Technical Drawing
