“FILLET” PIPE PRODUCT
| Designated Diameter (mm) | PVC Branch Size (mm) | |||||
|---|---|---|---|---|---|---|
| 300 | 100 | 125 | 150 | 200 | ||
| 375 | 100 | 125 | 150 | 200 | 250 | |
| 450 | 100 | 125 | 150 | 200 | 250 | 300 |
STANDARD PIPE PRODUCT
| Designated Diameter (mm) | PVC Branch Size (mm) | |||||
|---|---|---|---|---|---|---|
| 300 | 100 | |||||
| 375 | 100 | 125 | ||||
| 450 | 100 | 125 | 150 | 200 | ||
| 525 | 100 | 125 | 150 | 200 | 250 | |
| 600 | 100 | 125 | 150 | 200 | 250 | |
| 675-3000 | 100 | 125 | 150 | 200 | 250 | 300 |
Details

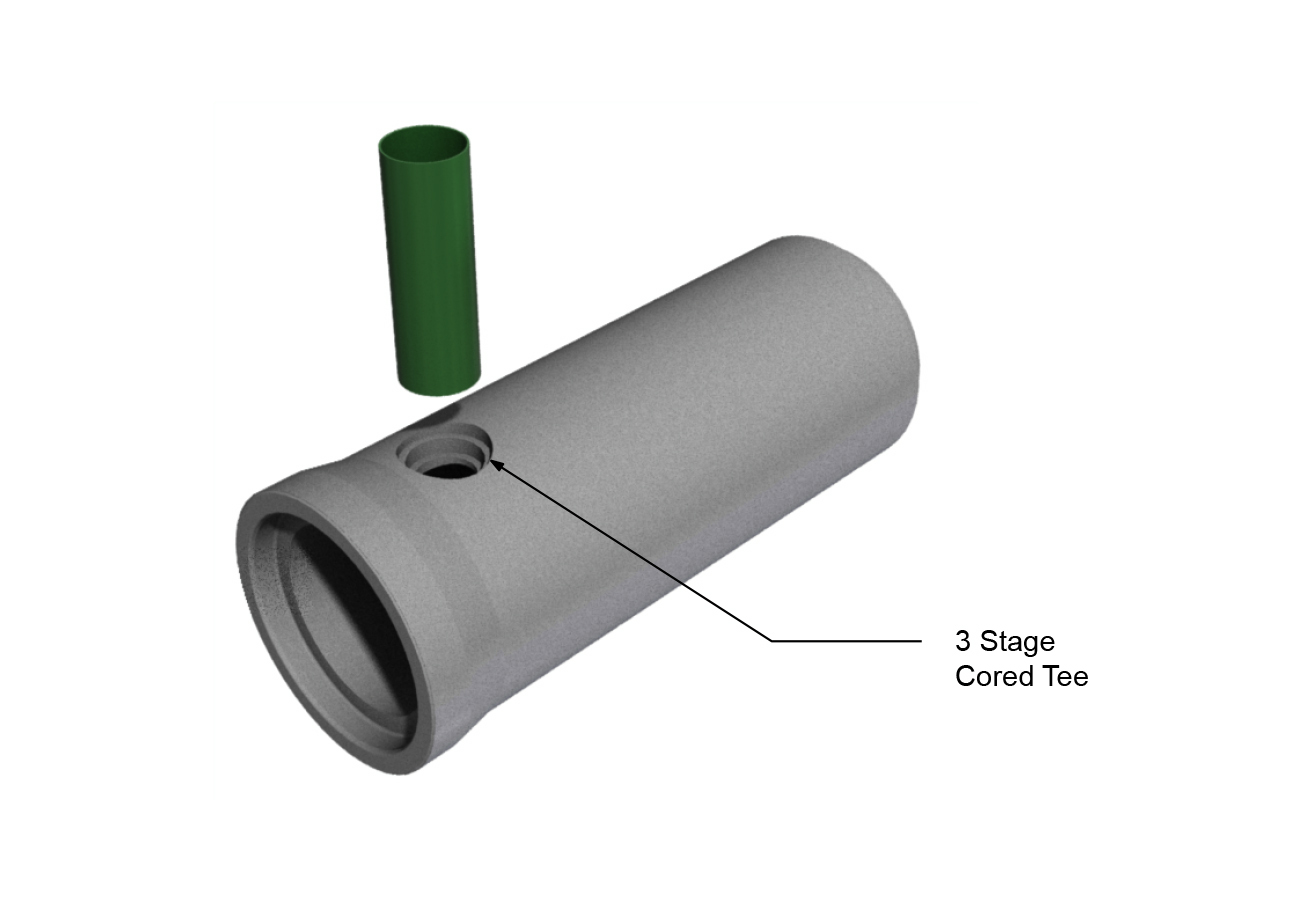

- Tee connection manufactured in accordance with CSA-A257.2.
- See here for connection type and sizes not detailed.
- All dimensions are in millimeters unless otherwise shown.
