Maintenance Hole 2400mm x 1800mm Box Chambers

Available at Ayr & Carp


Base Slab
(Mass – 3180 kg)

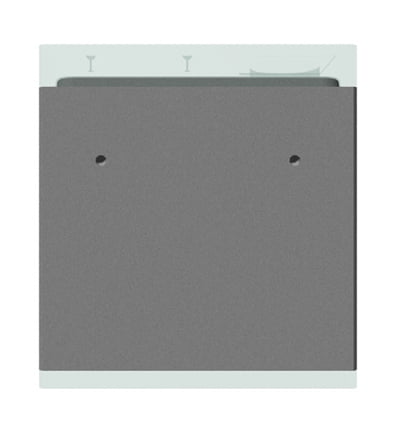

Riser
(Mass – 4821 kg)
Transition
(Mass – 4000 kg)
Flat Cap
(Mass – 4010 kg)

Notes

  1. Manufactured in accordance with CHBDC.
  2. Click here for maximum pipe size and alignment angles.
  3. Available riser section heights – 305, 610, 914, 1219, 1524, 1829, 2134 and 2500.
  4. Maintenance hole steps (circular hollow aluminum) as per OPSD 405.010.
  5. All dimensions are in millimeters unless otherwise shown.

PDF Downloads

Technical Drawing
