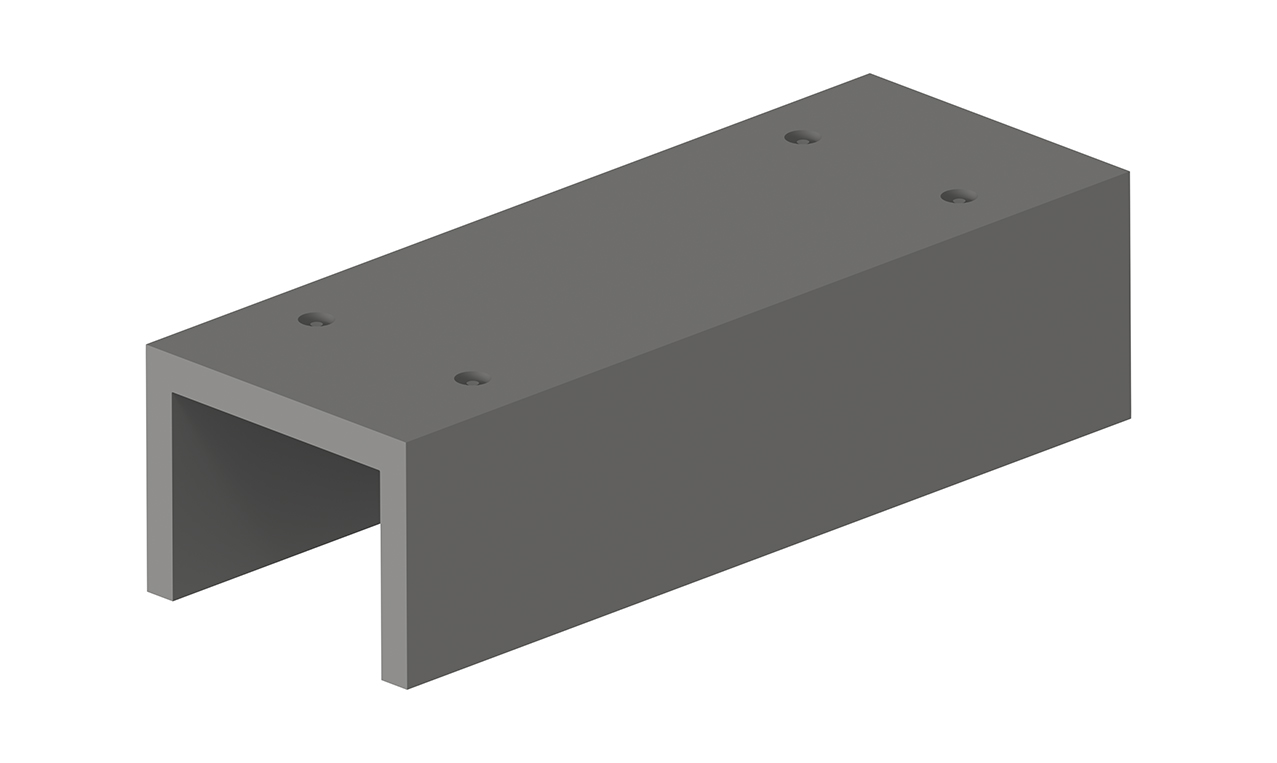

TRENCH COVERS

NOTES

Pipe Size Conc. (Nominal)	Pipe Size Conc. (O.D.)	Opening A	Width B	C	D	E	Height F	Bottom Thickness G	Mass	Anchor H	Anchor Size
mm	mm	mm	mm	mm	mm	mm	mm	mm	kg	mm	pcs
300	445	520	3366	1423	412	740	1672	439	5052	800	2 – 8 Ton
375	533	610	3366	1378	411	651	1672	439	4978	800	2 – 8 Ton
450	622	700	3366	1333	411	561	1672	439	4890	800	2 – 8 Ton
525	711	790	4167	1688.5	411	738	1939	462	7297	1000	2 – 8 Ton
600	800	880	4167	1643.5	410	649	1939	462	7183	1000	2 – 8 Ton
675	889	960	4167	1603.5	415	564	1939	462	7068	1000	2 – 8 Ton
750	978	1050	4968	1959	414	742	2206	484	9998	1000	2 – 8 Ton
825	1067	1140	4968	1914	413	653	2206	484	9841	1000	2 – 8 Ton
900	1156	1230	4968	1869	413	563	2206	484	9669	1000	2 – 8 Ton
