| Inside Dimensions | Outside Dimensions A | Outside Dimensions B | Top Slap Thickness | Bott. Slap Thickness | Wall (W) Thickness |
|---|---|---|---|---|---|
| 1829 x 3048 | 2287 | 3506 | 229 | 229 | 152 |
| 2438 x 3048 | 2896 | 3506 | 254 | 254 | 152 |
| 3048 x 3048 | 3506 | 3506 | 254 | 254 | 152 |
| 3048 x 3810 | 3506 | 4268 | 254 | 254 | 152 |
| 3048 x 4270 | 3506 | 4728 | 254 | 254 | 152 |
Details
Cisterns/Holding Tanks/Fire Water Reservoirs
- Manufactured in accordance with OPSS 1351 and CSA 56-25.
- Top Section heights @ 152mm increments.
Bottom section heights at 152mm increments. - Maintenance hole steps are circular hollow aluminum as per OPSD 405.010
- All dimensions are in millimeters unless otherwise shown.

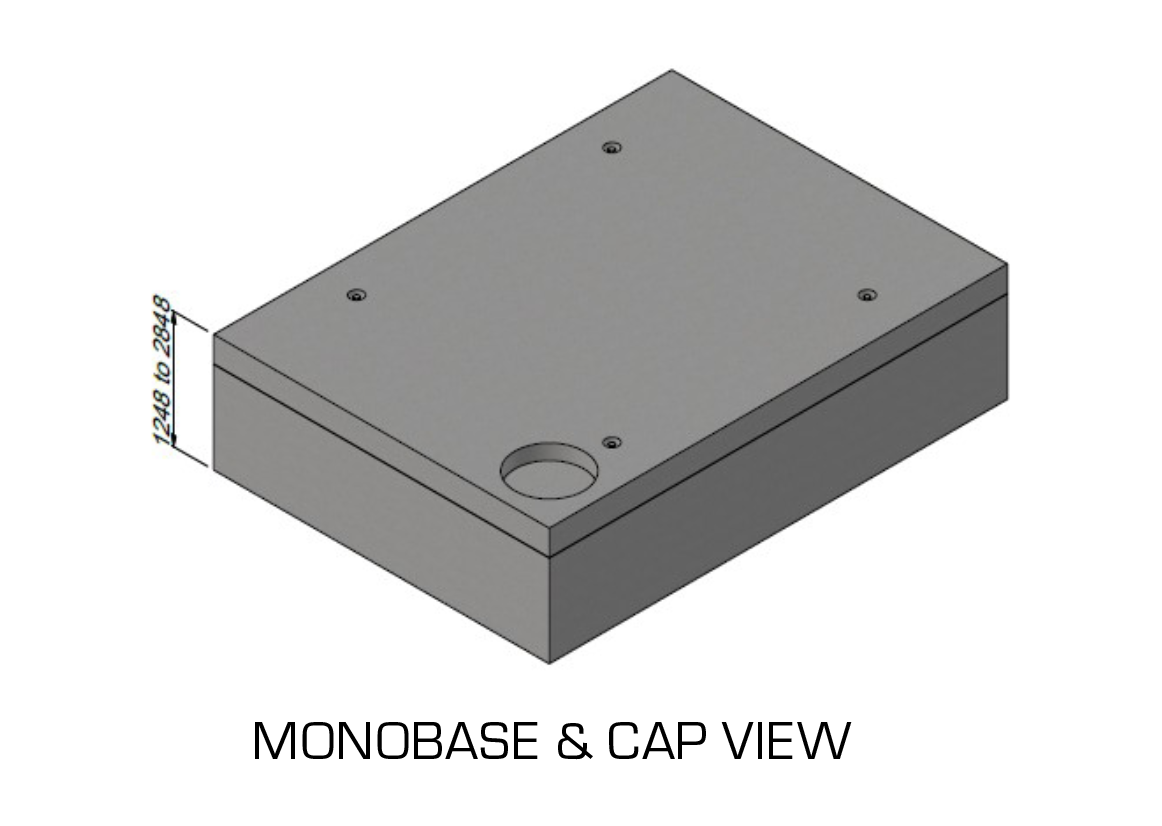

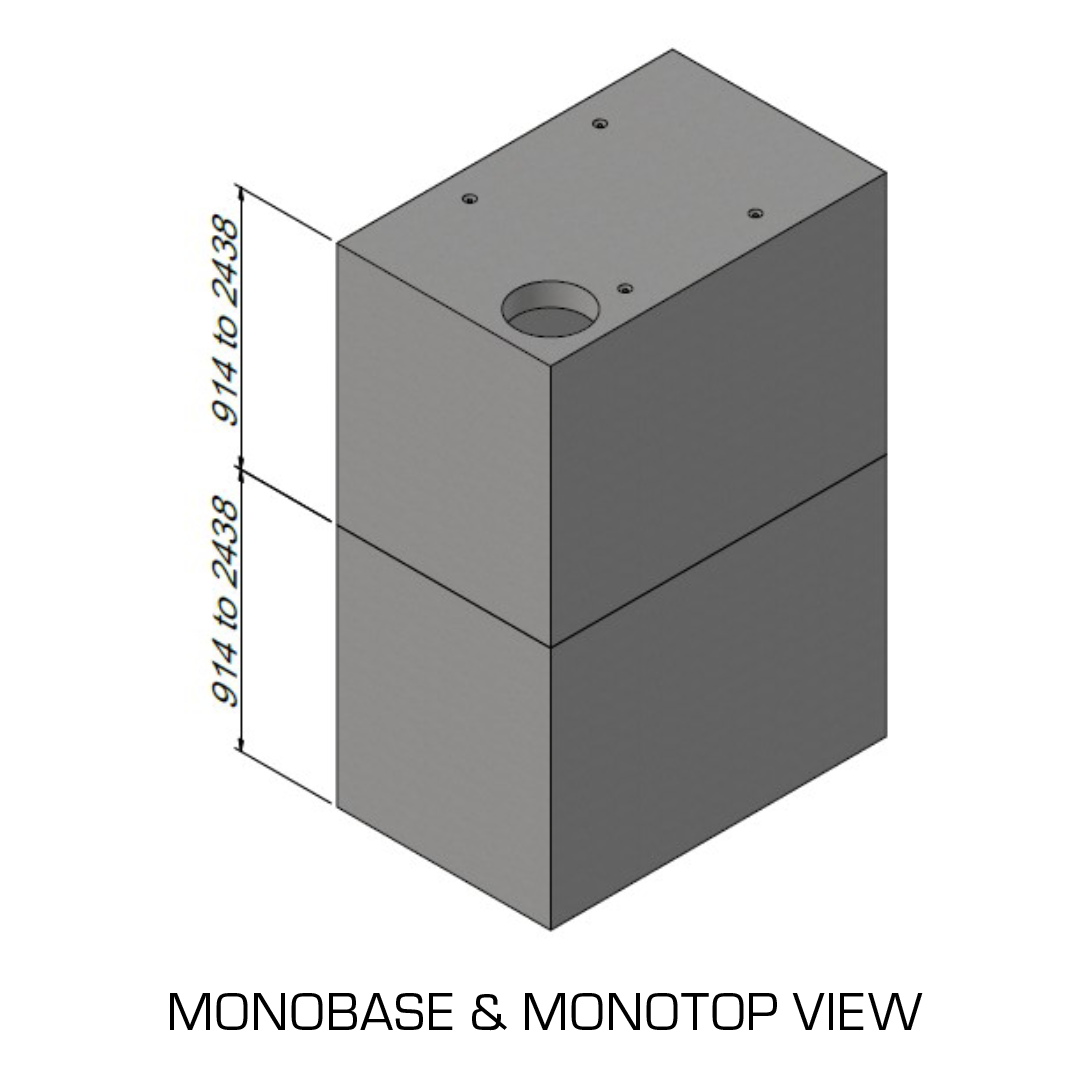

- Mono top sections available.
