| Unit Height | Bundle (PCS) | Mass (KG/EA) | Steps Y/N |
|---|---|---|---|
| 50mm | 10 | 55 | See Note 3 |
| 75mm | 8 | 82 | See Note 3 |
| 100mm | 6 | 109 | See Note 3 |
| 150mm | 6 | 164 | See Note 3 |
| 300mm | 1 | 325 | Y |
Details

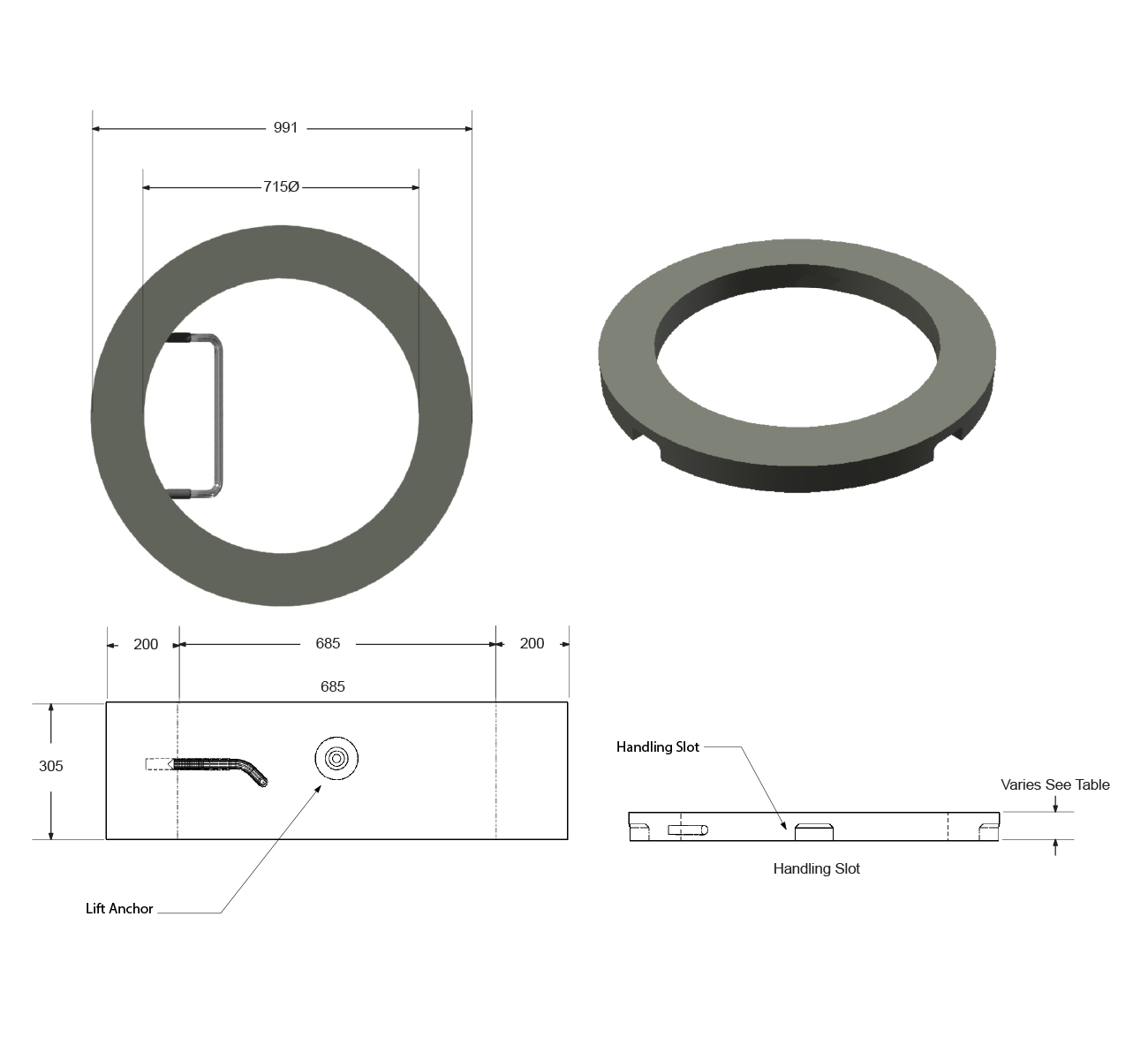

- Designed in accordance with OPSD 704.010.
- All dimensions are in millimeters unless otherwise shown.
- Steps can be pre-installed upon request.
