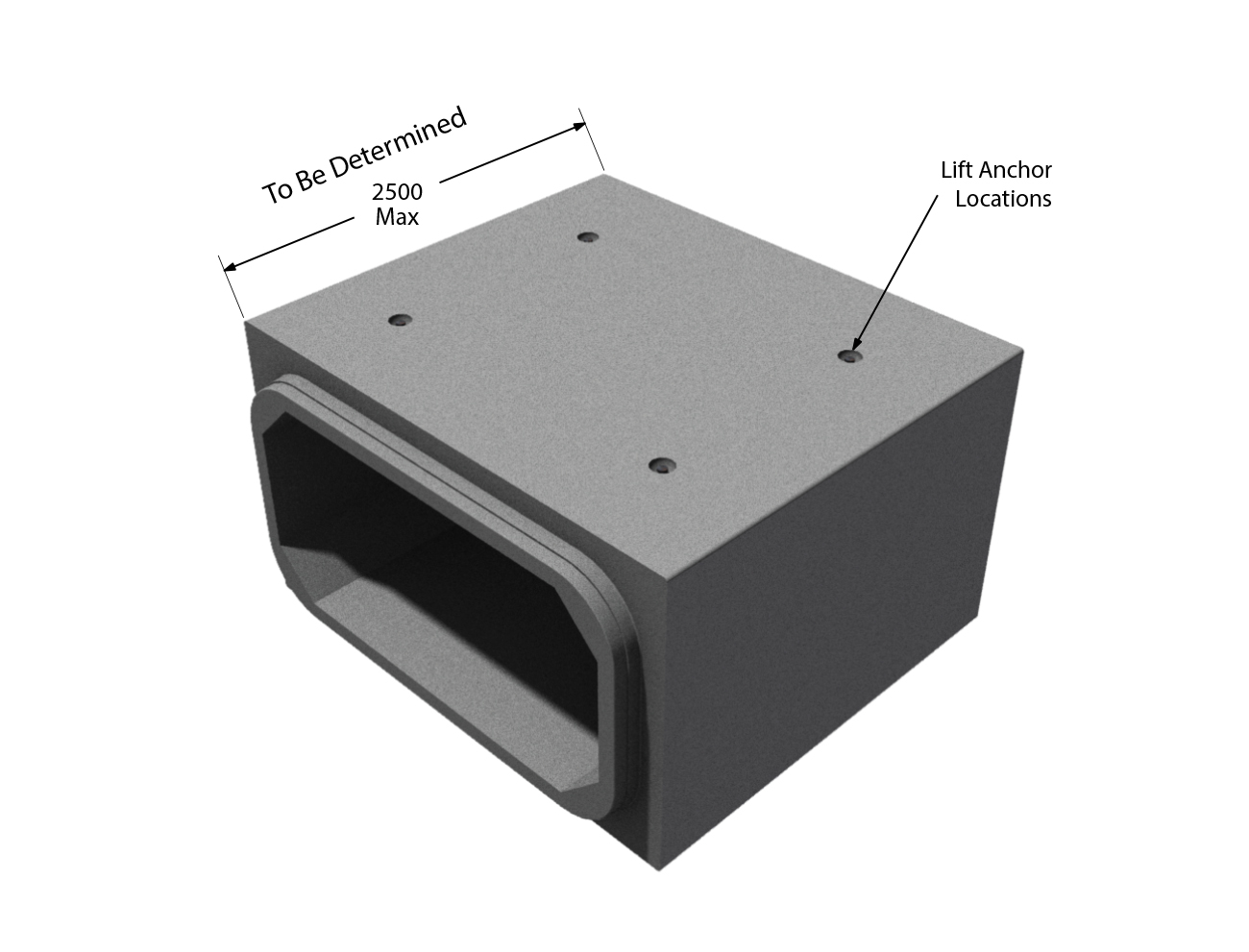

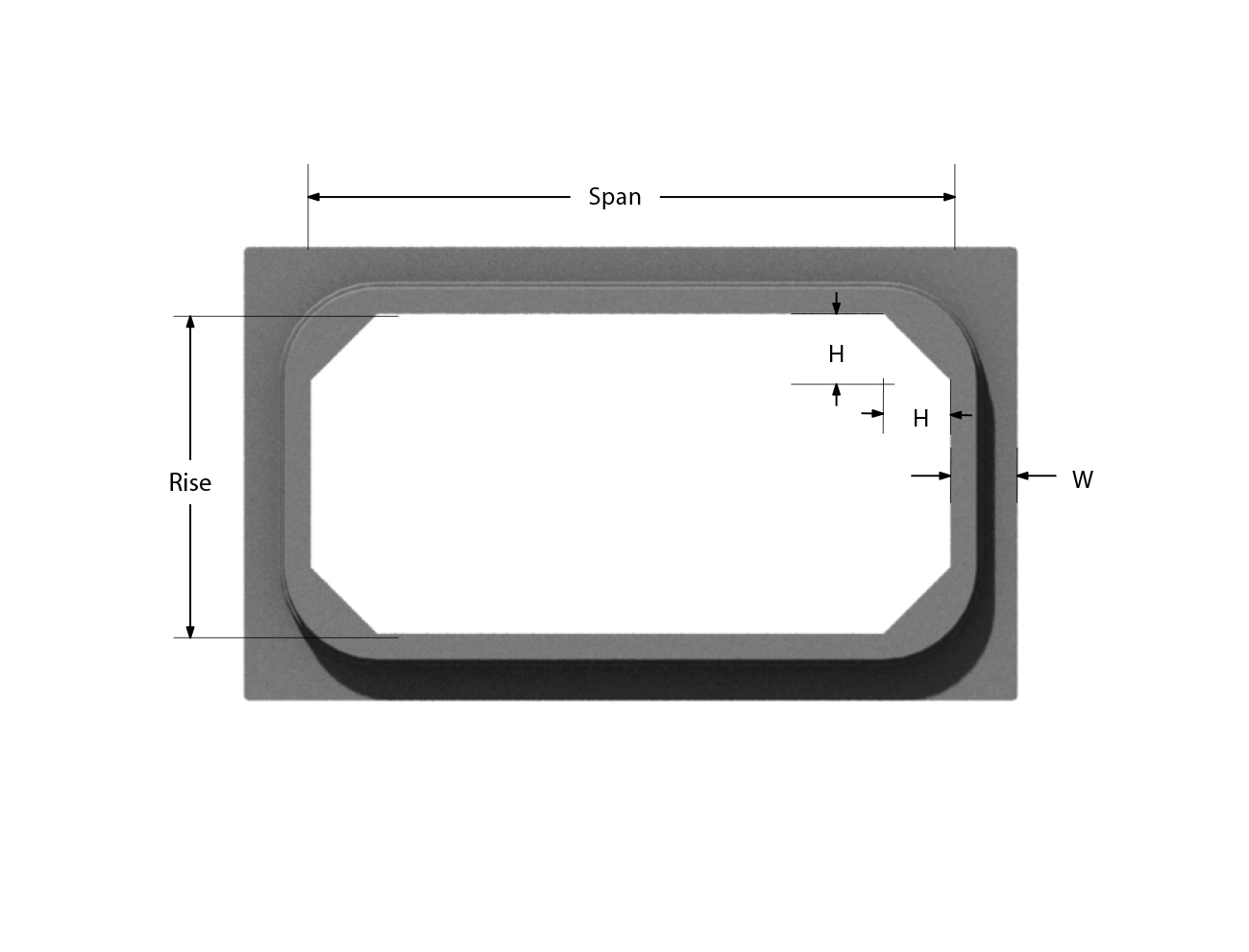

| Span | Rise | Wall Thickness (W) | Haunch (H) |
|---|---|---|---|
| mm | mm | mm | mm |
| 1200 | 900-1200 | 200 | 200 |
| 1500 | 1200-1500 | 200 | 200 |
| 1800 | 1500-1800 | 200 | 200 |
| 2400 | 900 | 200 | 200 |
| 2400 | 1200-2400 | 250/300/350 | 250/300/350 |
| 2700 | 1200-2700 | 250/300/350 | 250/300/350 |
| 3000 | 1200-3000 | 250/300/350 | 250/300/350 |
| 3300 | 1200-3300 | 250/300/350 | 250/300/350 |
| 3600 | 1200-3600 | 250/300/350 | 250/300/350 |
| 3900 | 1200-3900 | 300/350 | 300/350 |
| 4200 | 1200-4200 | 300/350 | 300/350 |
| 4500 | 1200-4200 | 300/350 | 300/350 |
| 4800 | 1200-4200 | 300/350 | 300/350 |
| 5100 | 1200-4200 | 300/350 | 300/350 |
| 5400 | 1200-4200 | 300/350 | 300/350 |
| 5700 | 1200-4200 | 300/350 | 300/350 |
| 6000 | 1200-4200 | 300/350 | 300/350 |
Details
- Designed and manufactured in accordance with the Canadian Highway Bridge Design Code (CHBDC)CAN/CSA-S6.
- Rise dimension is variable in 300mm increments.
- Contact our engineering department for special design concrete box section applications.
- All dimensions are in millimeters unless otherwise shown.
