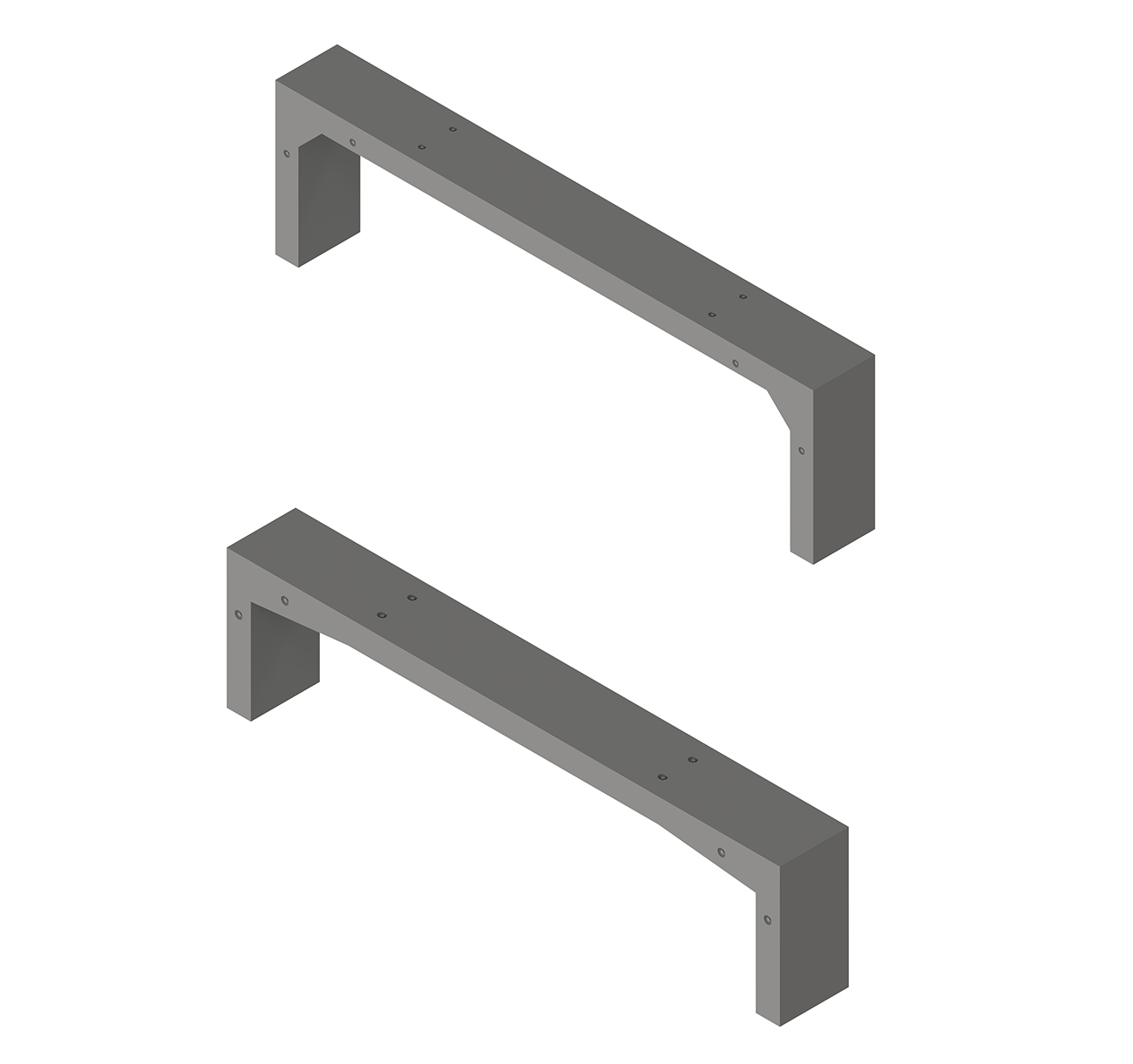

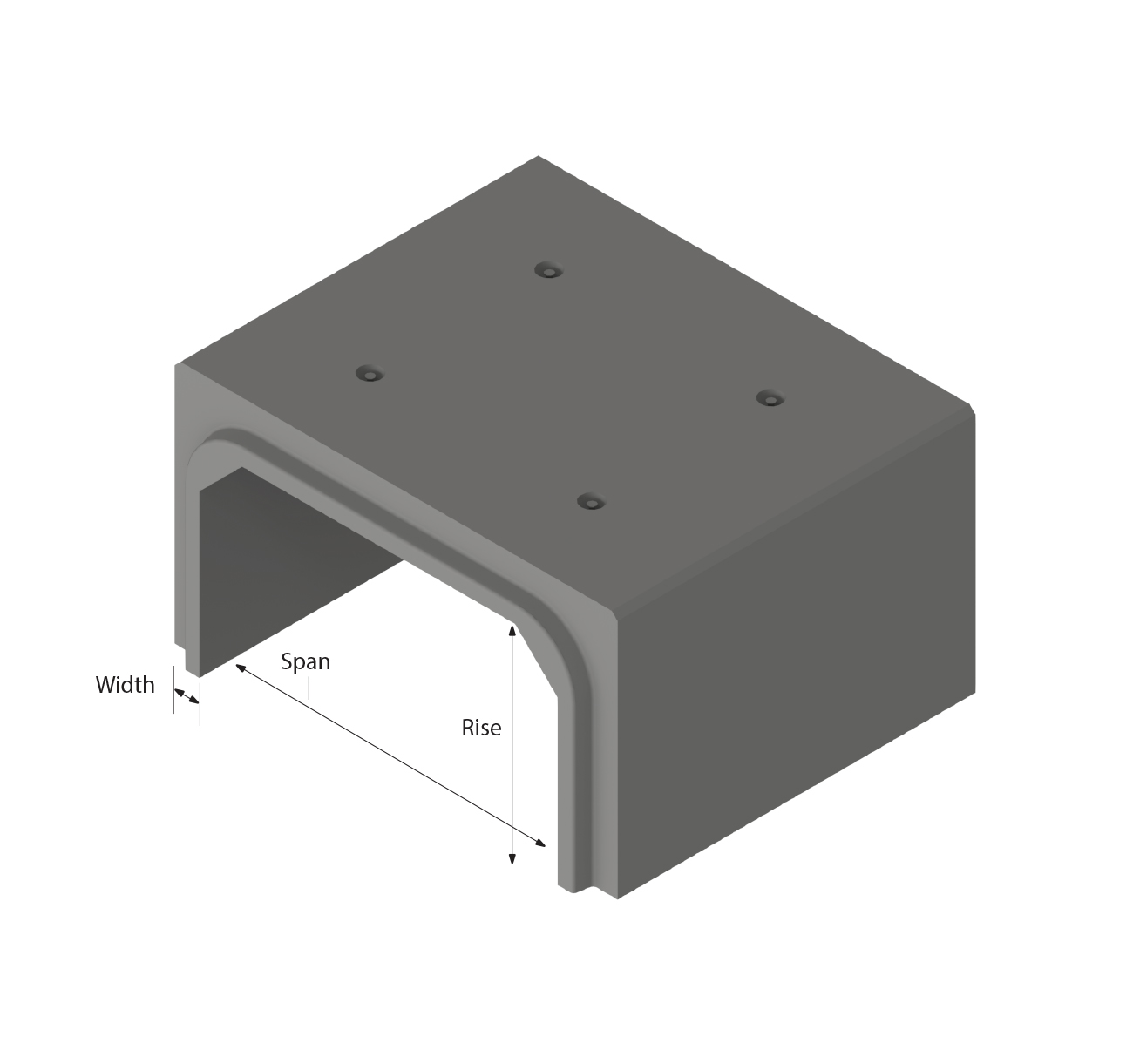

| Span | Rise | Wall Thickness (W) | Haunch (X) | Haunch (Y) |
|---|---|---|---|---|
| mm | mm | mm | mm | mm |
| 600 - 9144 | 600 - 3600 | 200 - 450 | 200 - 3000 | 200 - 450 |
Details
- 1. Designed and manufactured in accordance with the Canadian Highway Bridge Design Code (CHBDC)CAN/CSA-S6.
- Span and rise dimensions are variable in 300mm increments.
- Footing design available upon request.
- All dimentions are in millimeters unless otherwise shown.
- Contact our engineering department for custom design or larger three sided culverts.
