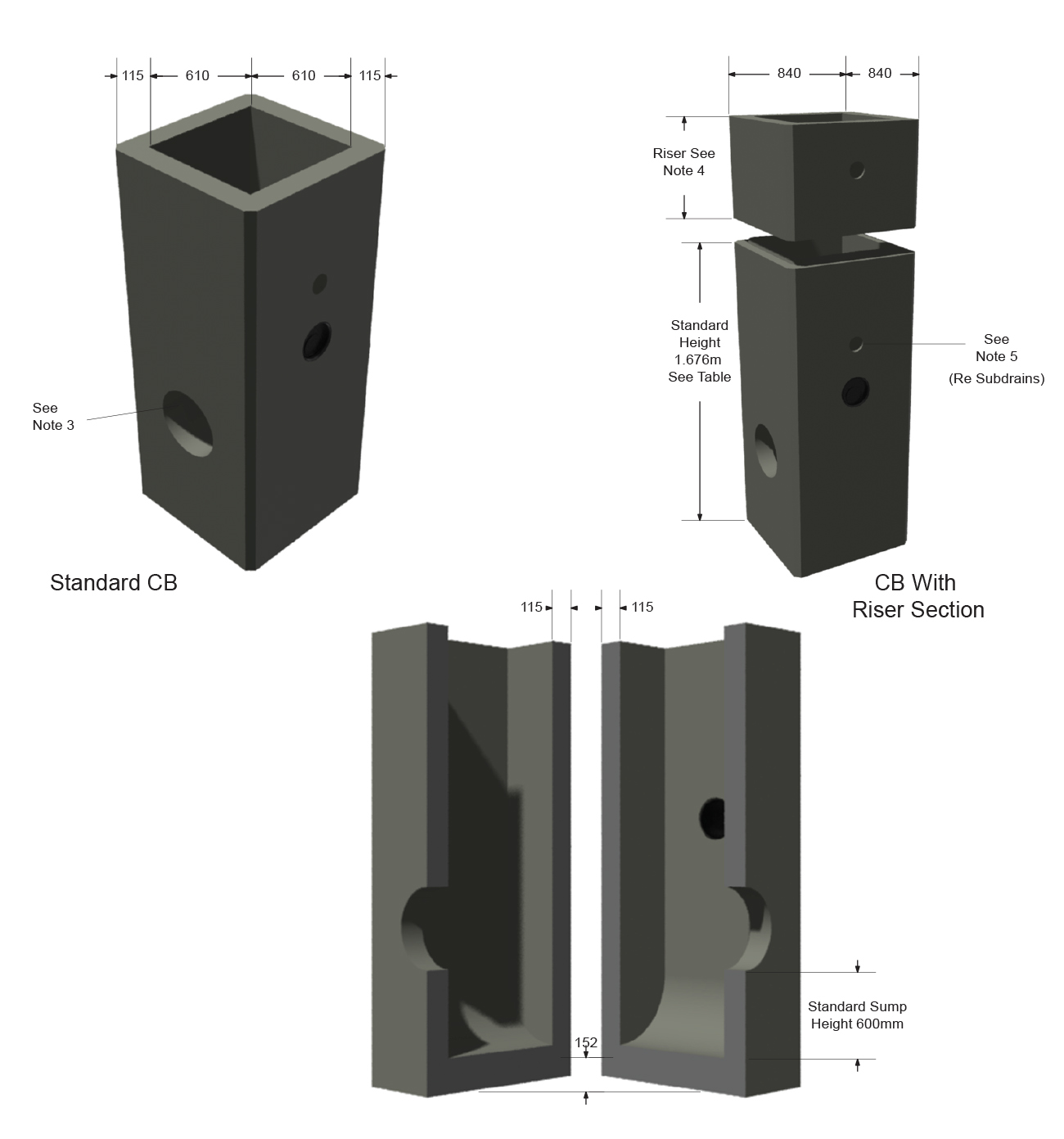

| Alternate Standard Heights (mm) | |
| A | 1219 |
| B | 1372 |
| C | 1524 |
| D | 1676 |
| E | 1829 |
| F | 1981 |
| G | 2134 |
Details
- Manufactured in accordance with OPSD 705.010.
- 150mm wall available upon request.
- Standard opening size – 350mm diameter.
- Riser sections available – 305, 457, 610, 914, and 1219mm
- Subdrain connection insert for 100, 125, and 150mm diameter standard on all stock catch basins.
- GOSS traps available upon request.
- Flow restrictor plates available; IPEX/Plastech ICD.
