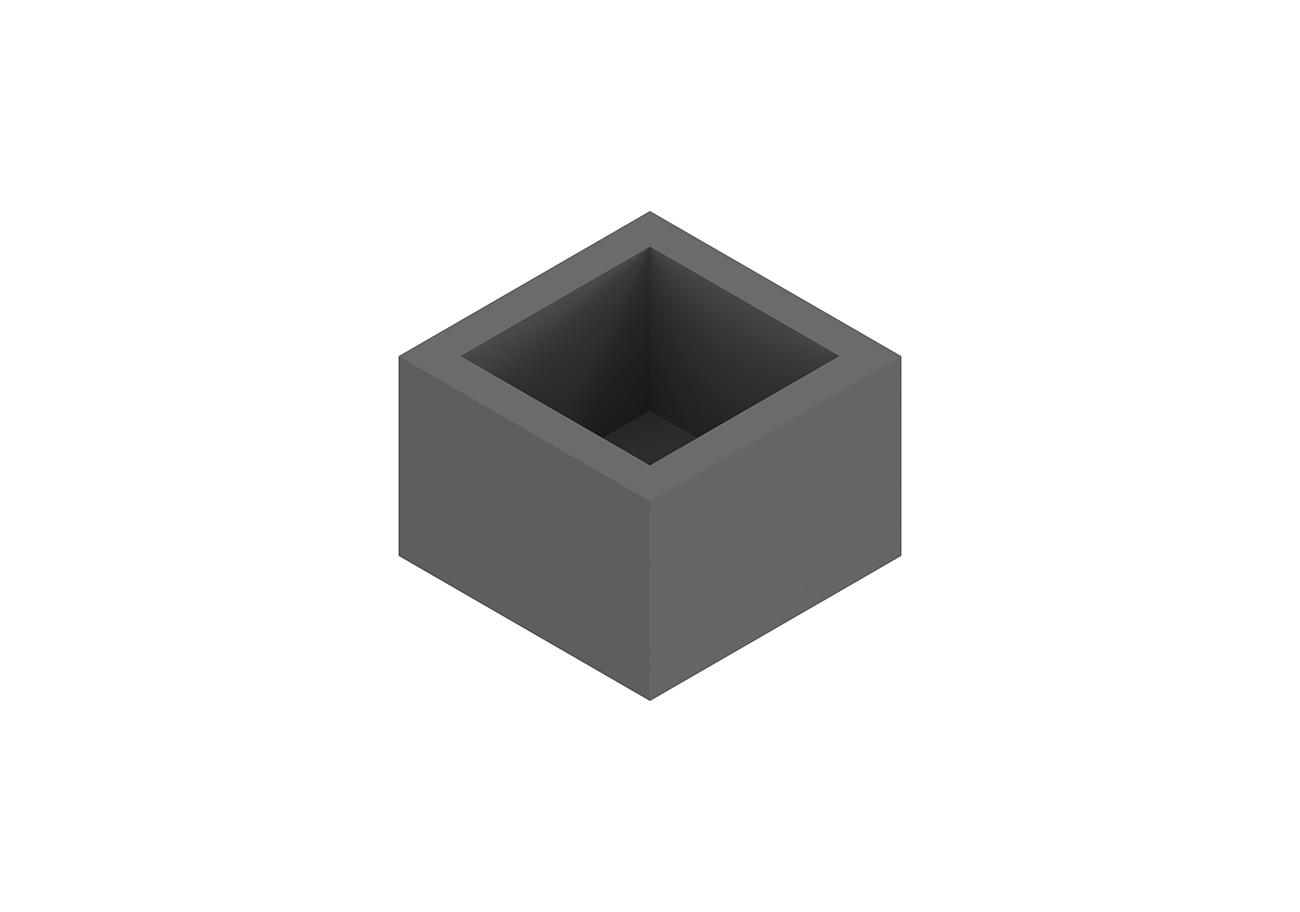

SUMP PIT
| Box Name | Inside Dimensions | Outside Dimensions | Top Slap Thickness | Bottom Slap Thickness | Wall (W) Thickness | |
|---|---|---|---|---|---|---|
| A | B | |||||
| M-3-3 | 914 x 914 | 1218 | 1218 | 152 | 152 | 152 |
| M-4 | 1219 x 1219 | 1677 | 1677 | 229 | 229 | 229 |
NOTES
- Manufactured in accordance with OPSS 1351.
- All dimensions are in millimeters unless otherwise shown.
- Sump pits are manufactured with a flush top or exposed reinforcing from the top.
- Alternate sizing available.
