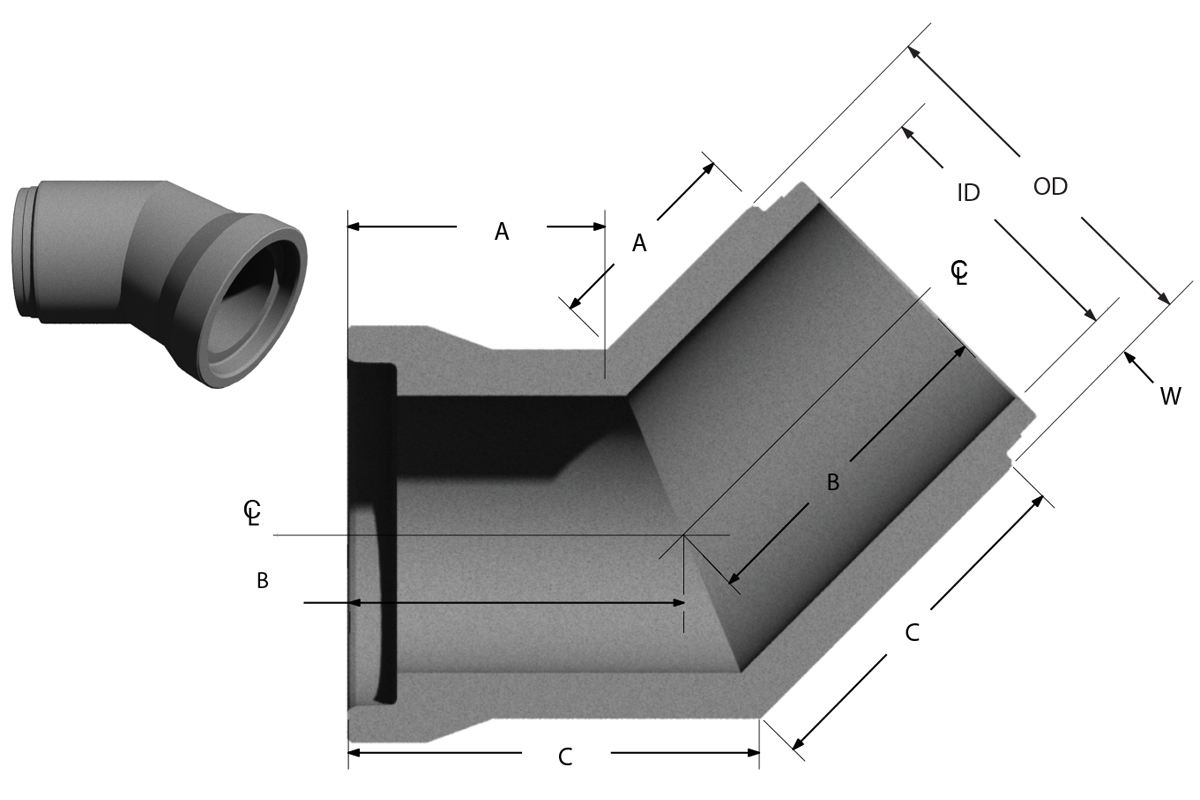

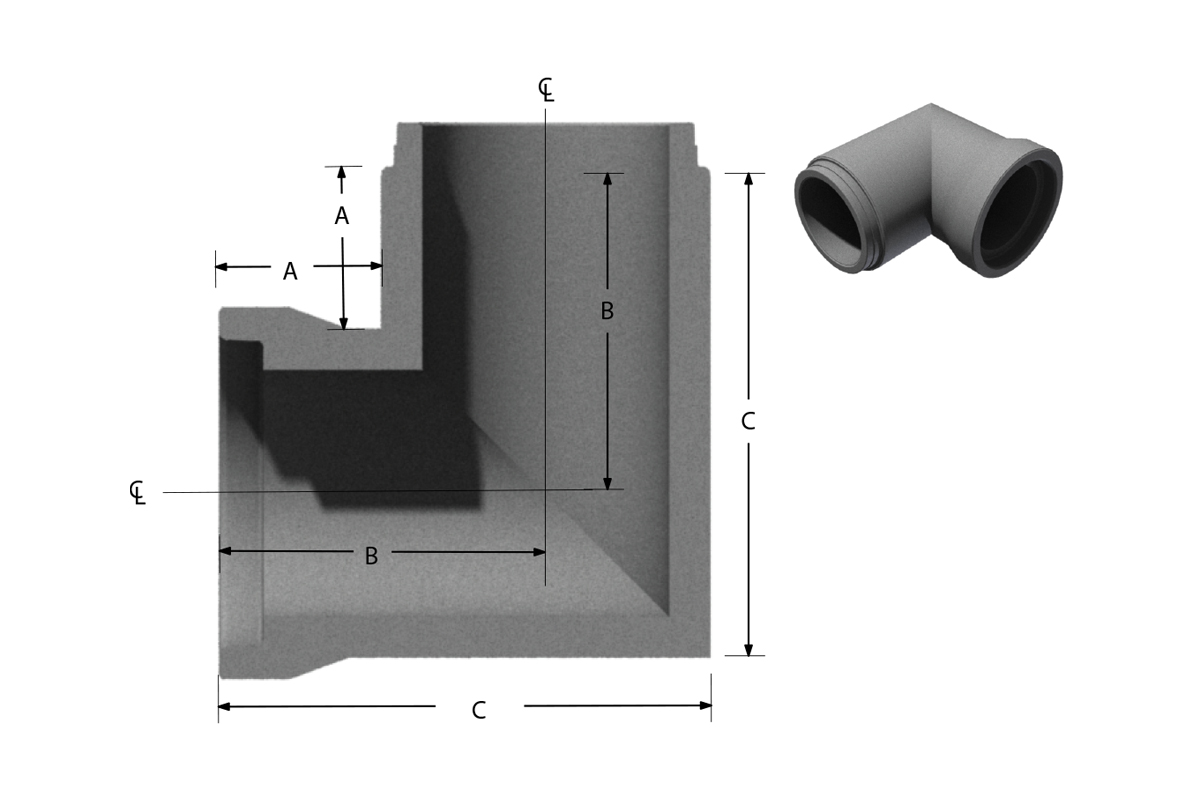

45˚ and 90˚ Bend – Ayr

Available at Ayr only

Designated
Internal Diameter
(Nominal)
(ID)		 Wall
Thickness
(W)		 Outside
Diameter
(OD)		 90˚ Bends 45˚ Bends
A B C A B C
mm mm mm mm mm mm mm mm mm
300 70.00 444.80 300 522 745 300 392 484
375 76.00 533.00 300 566 833 300 410 521
450 83.00 623.20 300 612 923 300 429 558
525 89.00 711.40 350 706 1061 350 497 645
600 95.00 799.60 350 750 1150 350 516 681
675 102.00 889.80 350 795 1240 350 534 719
750 108.00 978.00 350 839 1328 350 553 755
825 114.00 1066.20 350 883 1416 350 571 792
900 121.00 1156.40 350 928 1506 350 589 829
975 127.00 1244.60 598 1220 1842 962 1220 1478
1050 133.00 1332.80 558 1220 1886 944 1220 1496
1200 127.00 1473.20 483 1220 1957 919 1220 1525
1350 159.00 1689.60 Use 2 – 45˚ Bends 870 1220 1570
1500 152.00 1828.00 Use 2 – 45˚ Bends 841 1220 1599
1650 184.00 2044.40 Use 2 – 45˚ Bends 797 1220 1643
1800 178.00 2184.00 Use 2 – 45˚ Bends 768 1220 1672
1950 190.00 2361.20 Use 2 – 45˚ Bends 731 1220 1709
2100 203.00 2539.60 Use 2 – 45˚ Bends 694 1220 1746
2250 215.00 2716.00 Use 2 – 45˚ Bends 657 1220 1783
2400 229.00 2896.40 Use 2 – 45˚ Bends 620 1220 1820
2550 241.00 3072.80 Use 2 – 45˚ Bends 584 1220 1856
2700 254.00 3251.20 Use 2 – 45˚ Bends 547 1220 1893
3000 279.00 3606.00 Use 2 – 45˚ Bends 473 1220 1967

Notes

  1. All Bends are manufactured in accordance with CSA-A257.2.
  2. Special angle bends are available upon request.
  3. All dimensions are in millimeters unless otherwise shown.

PDF Downloads

300mm – 450mm Pipe Joint Detail
525mm – 975mm Pipe Joint Detail
1050mm – 3600mm Pipe Joint Detail
Joint Procedure
Technical Drawing
