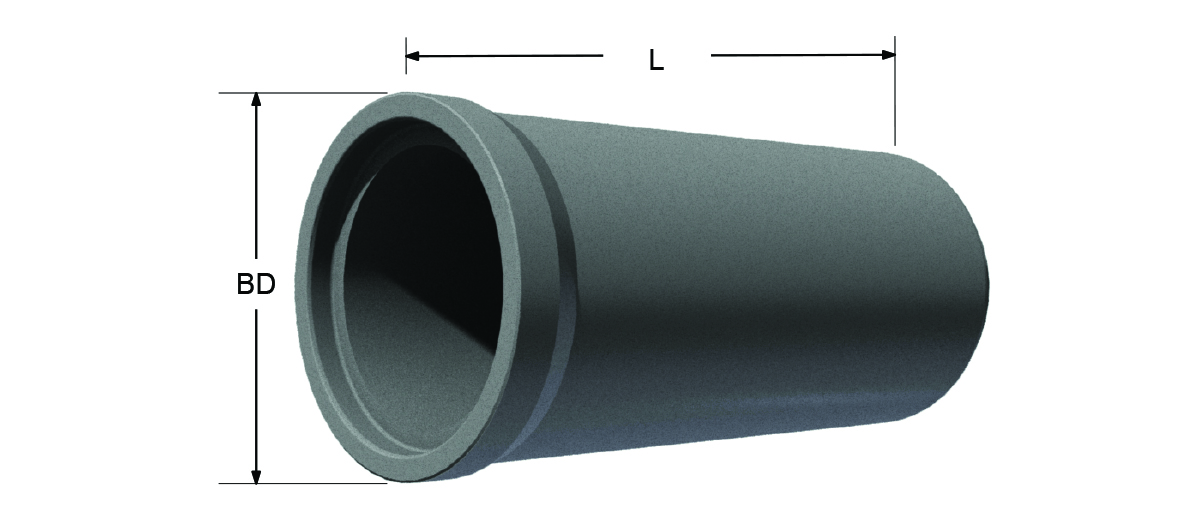

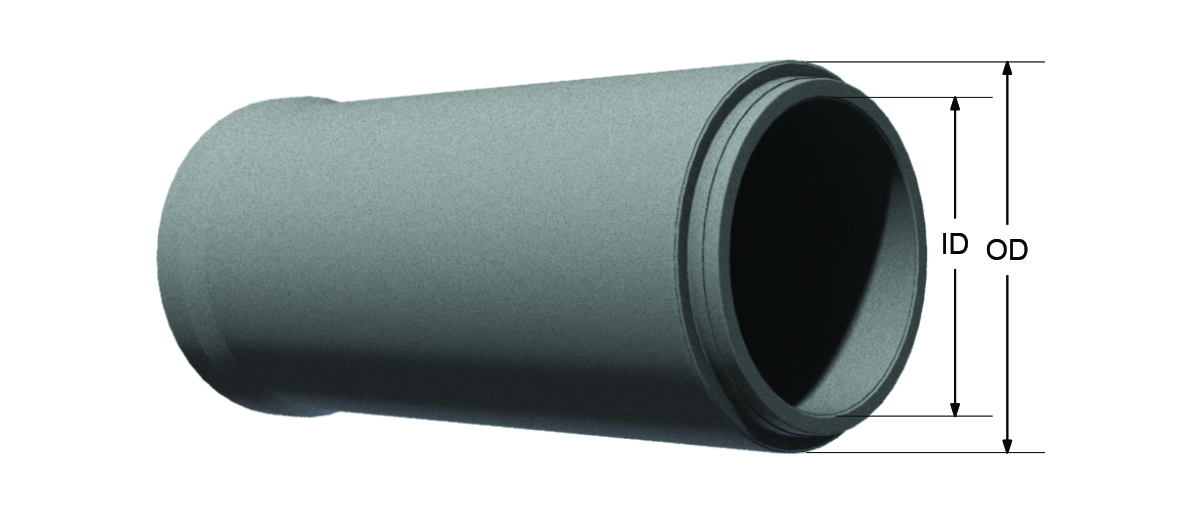

| Designated Internal Diameter (Nominal) | Actual Diameter (ID) | Outside Diameter (OD) | Wall Thickness (W) | Bell Diameter (BD) | Lay Length (L) | Waterway Area | Approximate Mass | Truckload Lots |
|---|---|---|---|---|---|---|---|---|
| mm | mm | mm | mm | mm | m | m² | kg/pc | pcs |
| 300 | 305 | 445 | 70 | 498 | 2.286 | 0.07 | 486 | 65 |
| 375 | 381 | 533 | 76 | 587 | 2.286 | 0.11 | 648 | 50 |
| 450 | 457 | 622 | 83 | 702 | 2.438 | 0.16 | 878 | 40 |
| 525 | 533 | 711 | 89 | 752 | 2.286 | 0.22 | 1016 | 34 |
| 600 | 610 | 800 | 95 | 829 | 2.286 | 0.29 | 1232 | 28 |
| 675 | 686 | 889 | 102 | 905 | 2.286 | 0.37 | 1458 | 22 |
| 750 | 762 | 978 | 108 | 1003 | 2.286 | 0.46 | 1716 | 19 |
| 825 | 838 | 1067 | 114 | - | 2.286 | 0.55 | 1974 | 18 |
| 900 | 914 | 1156 | 121 | - | 2.286 | 0.66 | 2253 | 17 |
Details
- Manufactured in accordance with CSA-A257.2.
- All standard reinforced concrete pipe classes available: 50-D, 65-D, 100-D and 140-D.
- Contact our engineering department for special design concrete pipe applications.
- All pipe joints come complete with pre-lubricated rubber gaskets.
