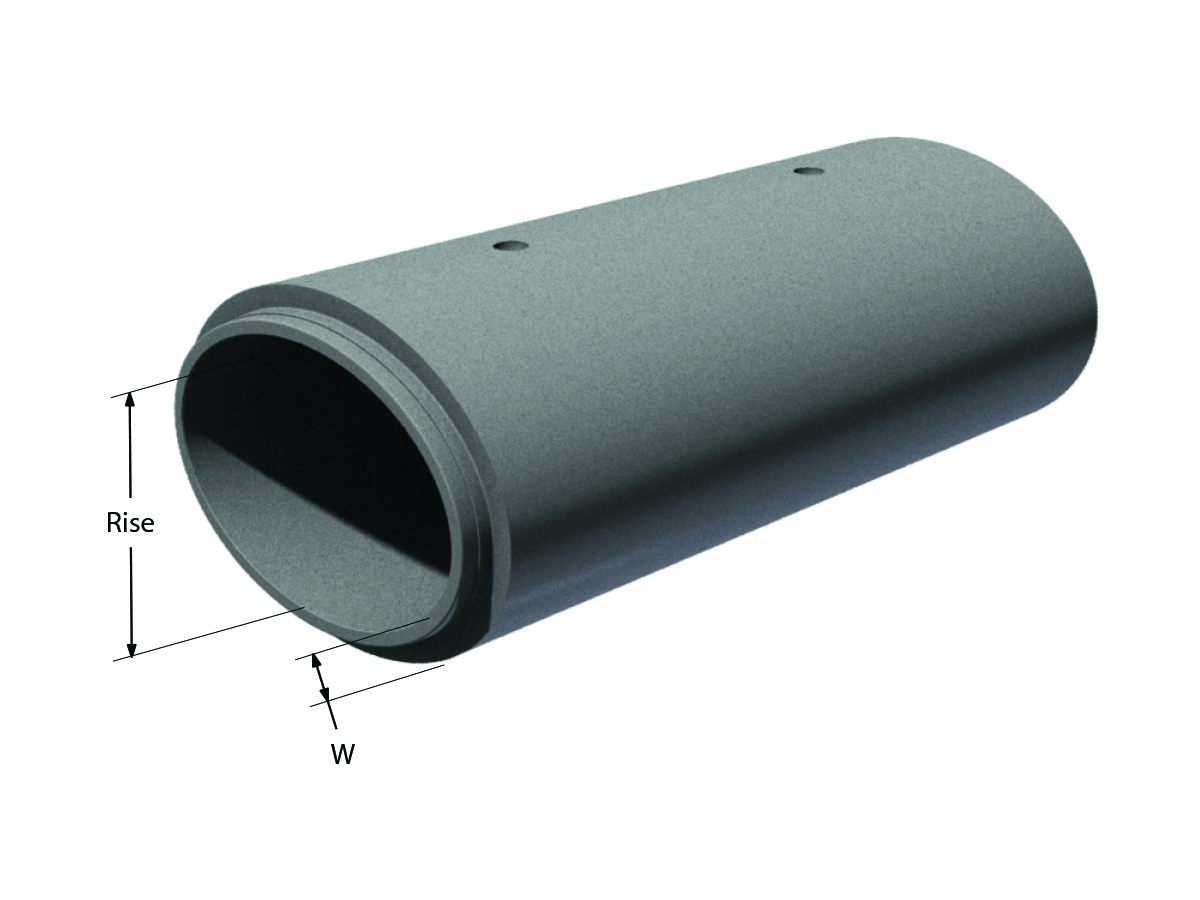

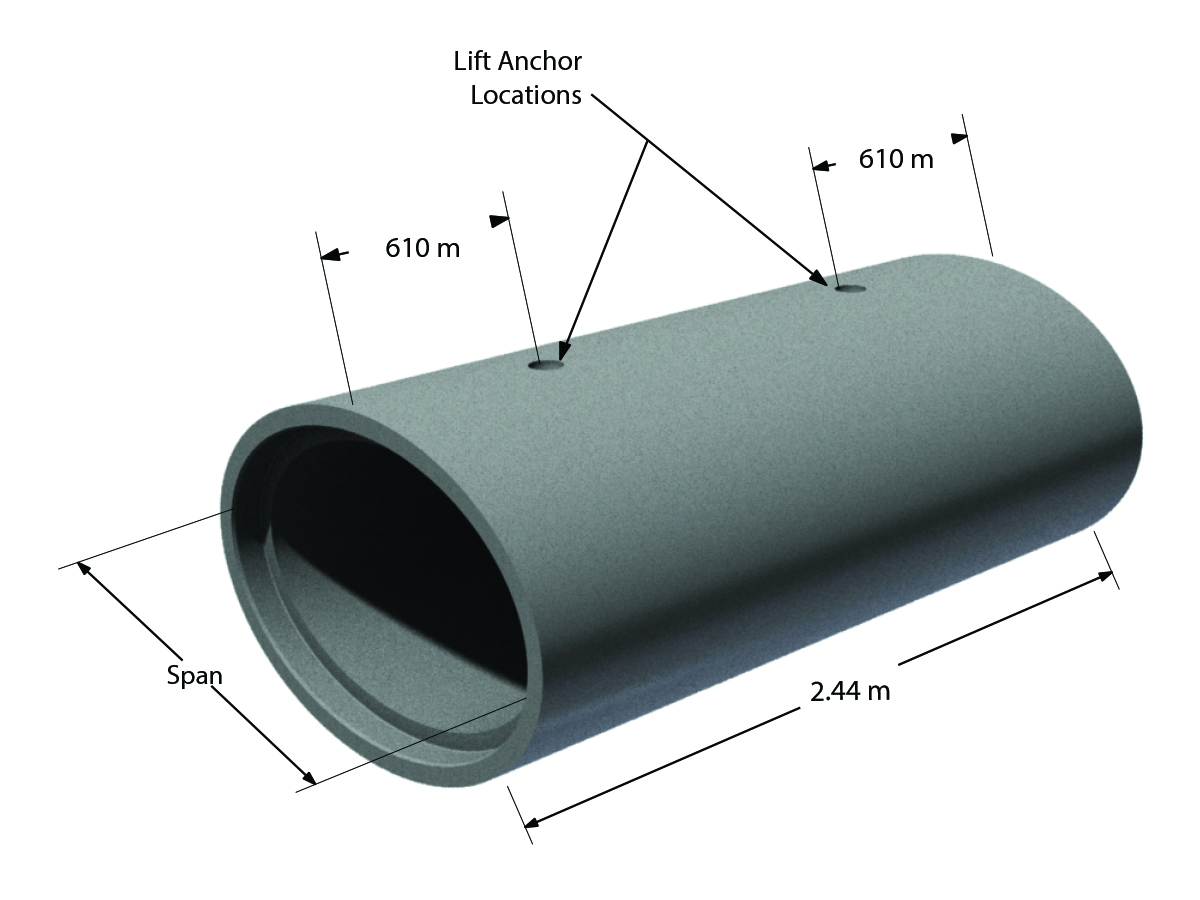

| Designated Size Rise X Span | Designated Equivalent Circular Pipe Diameter | Actual Size Rise X Span | Wall Thickness (W) | Waterway Area | Approximate Mass | Truckload Lots |
|---|---|---|---|---|---|---|
| mm | mm | mm | mm | m² | kg/pc | pcs |
| 480 x 760 | 600 | 483 x 762 | 83 | 0.29 | 1252 | 38 |
| 610 x 965 | 750 | 610 x 965 | 95 | 0.46 | 1583 | 20 |
| 730 x 1150 | 900 | 737 x 1143 | 114 | 0.69 | 2283 | 11 |
| 855 x 1345 | 1050 | 864 x 1346 | 127 | 0.95 | 2928 | 8 |
| 975 x 1535 | 1200 | 965 x 1524 | 140 | 1.20 | 3665 | 6 |
| 1090 x 1730 | 1350 | 1092 x 1727 | 152 | 1.54 | 4518 | 6 |
| 1220 x 1920 | 1500 | 1219 x 1930 | 165 | 1.91 | 5421 | 5 |
| 1340 x 2110 | 1650 | 1346 x 2108 | 178 | 2.30 | 6401 | 4 |
| 1465 x 2305 | 1800 | 1473 x 2311 | 191 | 2.74 | 7464 | 4 |
| 1585 x 2495 | 1950 | 1600 x 2489 | 203 | 3.22 | 8622 | 3 |
| 1705 x 2690 | 2100 | 1727 x 2692 | 216 | 3.73 | 9845 | 3 |
| 1825 x 2870 | 2250 | 1829 x 2870 | 229 | 4.12 | 11151 | 2 |
| 1950 x 3070 | 2400 | 1956 x 3073 | 241 | 4.87 | 12535 | 2 |
| 2080 x 3250 | 2550 | 2083 x 3251 | 247 | 5.31 | 13518 | 2 |
| 2195 x 3455 | 2700 | 2210 x 3454 | 267 | 6.17 | 15597 | 1 |
Details
- Manufactured in accordance with ASTM C 507.
- Standard reinforced concrete HE pipe classes available: HE-I, HE-II, HE-III, HE-IV.
- All pipe joints come complete with butyl gasket.
