City of Ottawa Box Valve Chamber

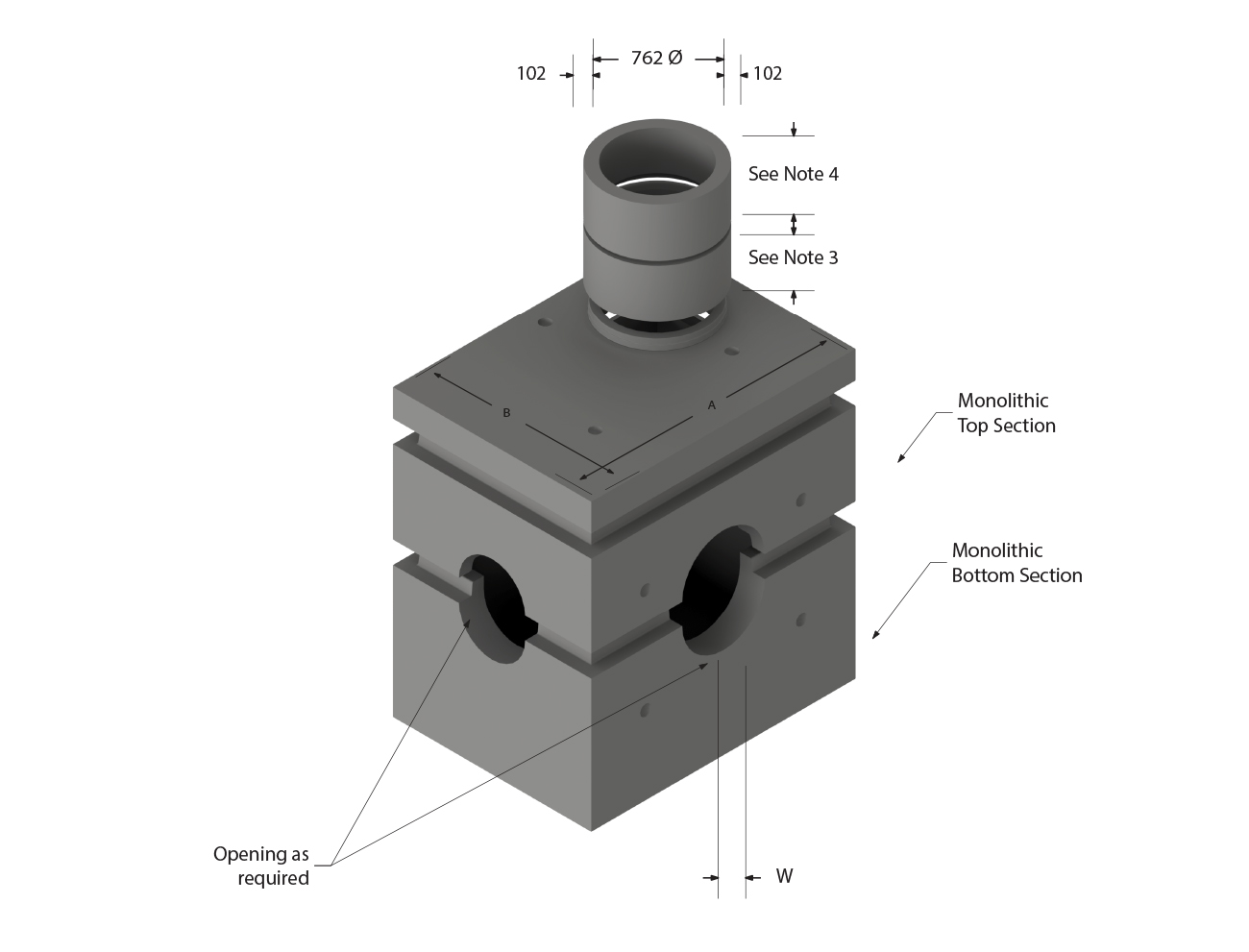

Outside Dimensions
City of Ottawa SpecificationInside DimensionsABTop Slap ThicknessBott. Slap ThicknessWall (W) Thickness
W31.11524 x 182919822287229229229
W10 ~ R11829 x 243821342896229229229
W10 ~ R21829 x 304821343506229229229
W11 ~ R32438 x 304828963506254254229
W11 ~ R43048 x 381035064268254254229
W12 ~ R32438 x 304828963506254254229
W12 ~ R43048 x 381035064268254254229
W13 ~ R43048 x 381035064268254254229

Details

  1. Manufactured in accordance with City of Ottawa Standards.
  2. All Valve Chambers c/w Hollow Aluminum Steps as per OPSD 405.010.
  3. All pieces c/w lifting anchors.
  4. Pipe gaskets available upon request.
  5. All joints to be sealed with Hydrophilic Waterstop & a Waterproofing membrane.
  6. For adjusters refer to drawing here.
  7. Mono top sections available if required.
