Drycast Maintenance Hole 2400 x 1800mm Box Chambers

Details

1. Manufactured in accordance with CHBDC.
2. See here for maximum pipe size and alignment angles.

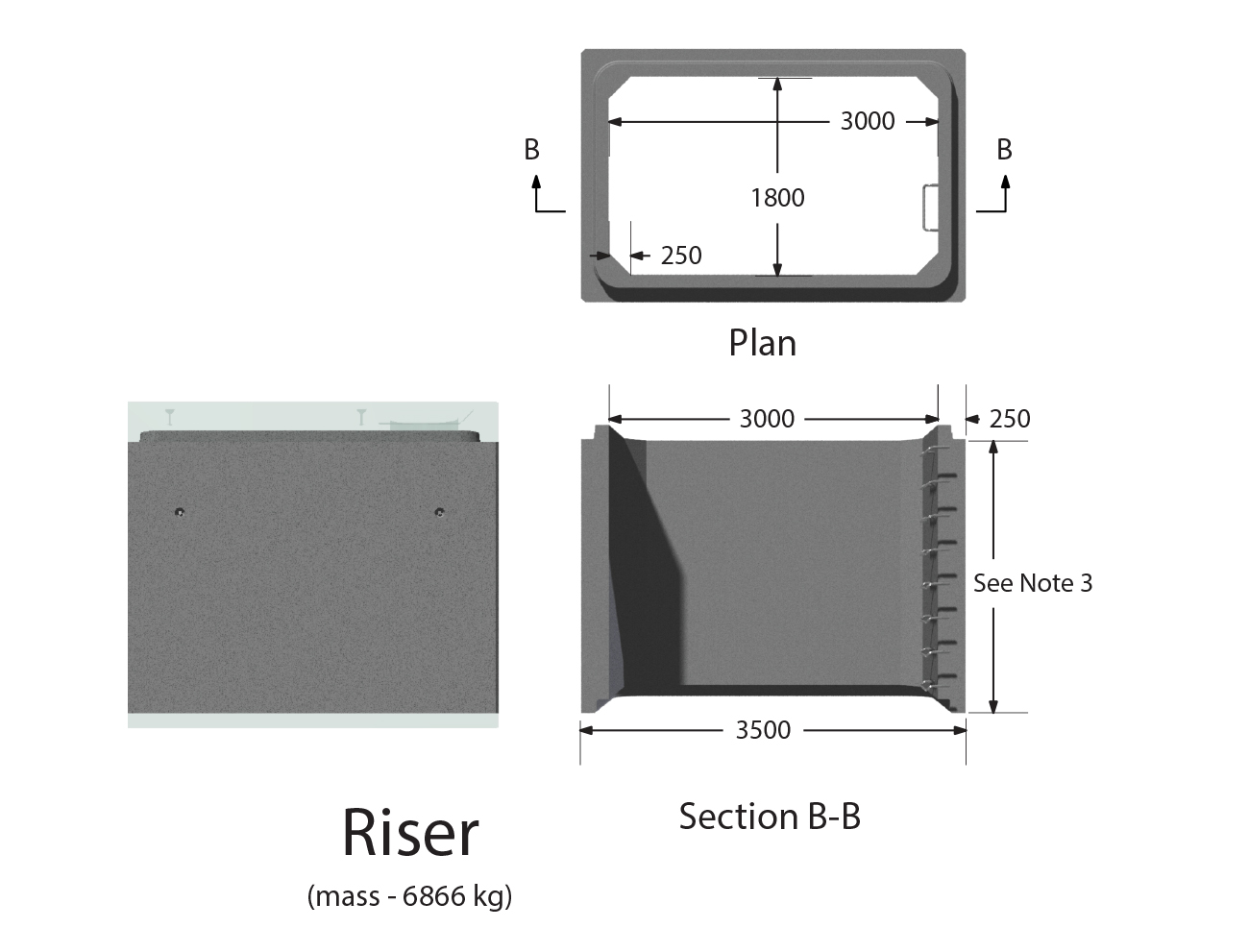

3. Available riser section heights – 305, 610, 914, 1219, 1524, 1829, 2134 and 2500.
4. Maintenance hole steps (circular hollow aluminum) as per OPSD 405.010.
5. All dimensions are in millimeters unless otherwise shown.
