Details
- Manufactured in accordance with OPSD 701.051.
- See here for maximum pipe size and alignment angles.

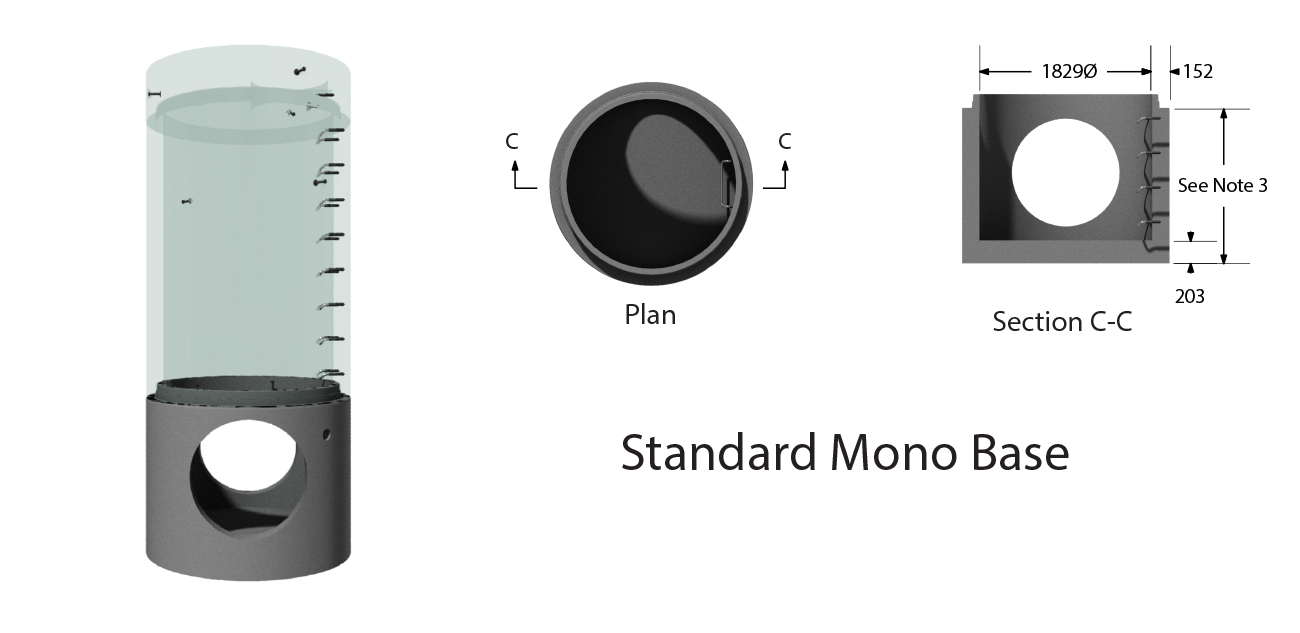

- Available mono base heights – 610, 914, 1067, 1219, 1372, 1524, 1676,1829, 1981, 2134, 2286 and 2438.

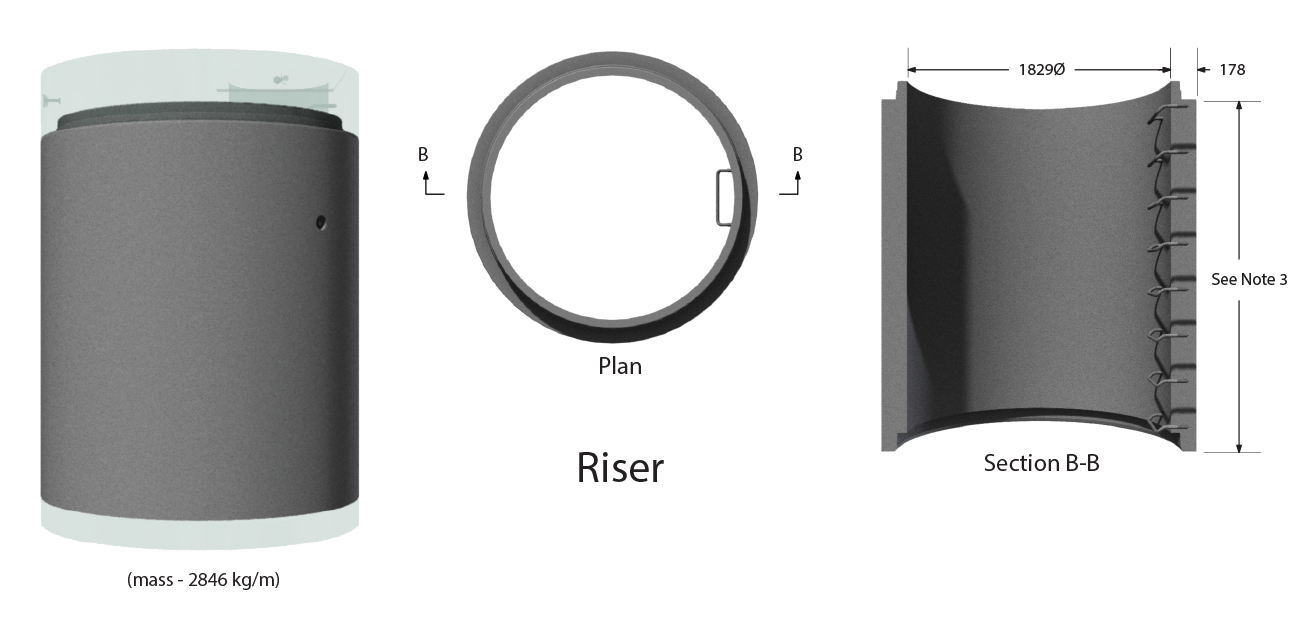

- Available riser section heights – 305, 610, 914, 1219, 1524, 1829, 2134 and 2438.
- Maintenance hole steps (circular hollow aluminum) as per OPSD 405.010.
- All dimensions are in millimeters unless otherwise shown.
