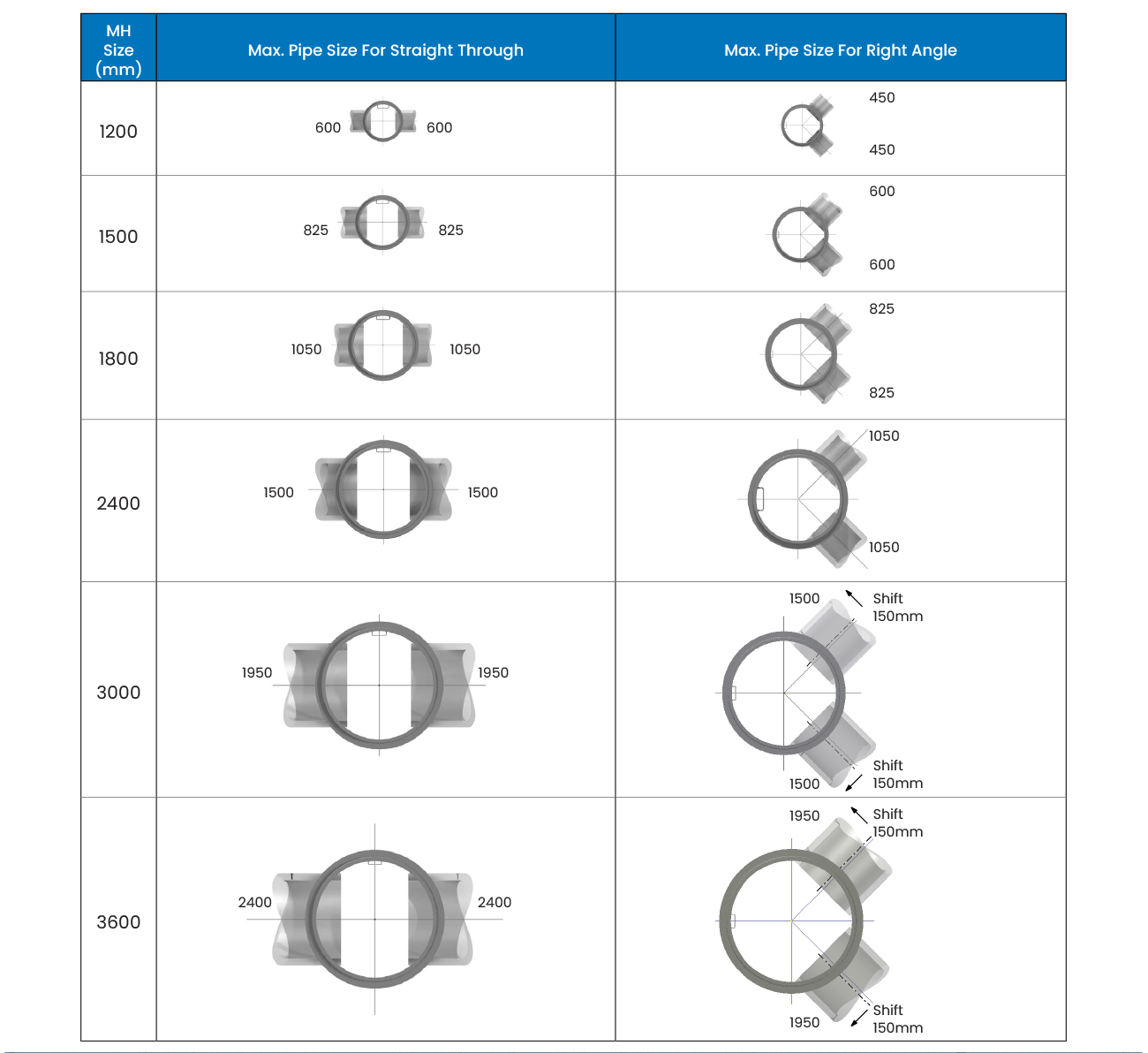

Maintenance Hole Circular Max Pipe Sizes

60° SEPARATION

Pipe Size	300	375	450	525	600	675	750	825	900	975	1050	1200
300	1500
375	1500	1800
450	1800	1800	1800
525	1800	1800	1800	2400
600	1800	1800	2400	2400	2400
675	1800	2400	2400	2400	2400	2400
750	2400	2400	2400	2400	2400	2400	2400
825	2400	2400	2400	2400	2400	3000	3000	3000
900	2400	2400	2400	2400	2400	3000	3000	3000	3000
975	2400	2400	2400	2400	3000	3000	3000	3000	3000	3000
1050	2400	2400	2400	3000	3000	3000	3000	3000	3000	3600	3600
1200	3000	3000	3000	3000	3000	3000	3000	3600	3600	3600	3600	3600
1350	3000	3000	3000	3000	3000	3600	3600	3600	3600	3600	3600
1500	3000	3000	3000	3600	3600	3600	3600	3600	3600	3600
1650	3600	3600	3600	3600	3600	3600	3600	3600
1800	3600	3600	3600	3600	3600
1950	3600	3600	3600

Pipe Size	300	375	450	525	600	675	750	825	900	975	1050	1200	1350	1500
300	1200
375	1200	1200
450	1500	1500	1500
525	1500	1500	1500	1800
600	1500	1500	1800	1800	1800
675	1500	1800	1800	1800	1800	1800
750	1500	1800	1800	1800	1800	2400	2400
825	1800	1800	1800	1800	2400	2400	2400	2400
900	1800	1800	1800	2400	2400	2400	2400	2400	2400
975	1800	2400	2400	2400	2400	2400	2400	2400	2400	3000
1050	2400	2400	2400	2400	2400	2400	2400	2400	3000	3000	3000
1200	2400	2400	2400	2400	2400	2400	3000	3000	3000	3000	3000	3000
1350	2400	2400	2400	2400	3000	3000	3000	3000	3000	3000	3000	3600	3600
1500	2400	3000	3000	3000	3000	3000	3000	3000	3000	3600	3600	3600	3600	3600
1650	3000	3000	3000	3000	3000	3000	3600	3600	3600	3600	3600	3600	3600
1800	3000	3000	3000	3600	3600	3600	3600	3600	3600	3600	3600	3600
1950	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600
2100	3600	3600	3600	3600	3600	3600	3600	3600
2250	3600	3600	3600	3600	3600
2400	3600	3600

Pipe Size	300	375	450	525	600	675	750	825	900	975	1050	1200	1350	1500	1650	1800	1950
300	1200
375	1200	1200
450	1200	1200	1200
525	1200	1200	1500	1500
600	1200	1500	1500	1500	1500
675	1500	1500	1500	1500	1800	1800
750	1500	1500	1500	1500	1800	1800	1800
825	1500	1500	1800	1800	1800	1800	1800	1800
900	1800	1800	1800	1800	1800	1800	1800	1800	1800
975	1800	1800	1800	1800	1800	1800	2400	2400	2400	2400
1050	1800	1800	1800	1800	1800	2400	2400	2400	2400	2400	2400
1200	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	3000	3000
1350	2400	2400	2400	2400	2400	2400	2400	2400	3000	3000	3000	3000	3000
1500	2400	2400	2400	2400	2400	2400	3000	3000	3000	3000	3000	3000	3000	3000
1650	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3600	3600	3600
1800	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3600	3600	3600	3600	3600
1950	3000	3000	3000	3000	3000	3000	3000	3000	3000	3600	3600	3600	3600	3600	3600	3600	3600
2100	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600
2250	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600
2400	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600

Pipe Size	300	375	450	525	600	675	750	825	900	975	1050	1200	1350	1500	1650	1800	1950	2100
300	1200
375	1200	1200
450	1200	1200	1200
525	1200	1200	1200	1200
600	1200	1200	1200	1200	1500
675	1500	1500	1500	1500	1500	1500
750	1500	1500	1500	1500	1500	1500	1500
825	1500	1500	1500	1500	1500	1500	1800	1800
900	1500	1500	1500	1500	1500	1800	1800	1800	1800
975	1800	1800	1800	1800	1800	1800	1800	1800	1800	1800
1050	1800	1800	1800	1800	1800	1800	1800	1800	1800	2400	2400
1200	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400
1350	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	3000
1500	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	3000	3000	3000
1650	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000
1800	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3600
1950	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3600	3600	3600
2100	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600
2250	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600
2400	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600

Pipe Size	300	375	450	525	600	675	750	825	900	975	1050	1200	1350	1500	1650	1800	1950	2100	2250	2400
300	1200
375	1200	1200
450	1200	1200	1200
525	1200	1200	1200	1200
600	1200	1200	1200	1200	1200
675	1500	1500	1500	1500	1500	1500
750	1500	1500	1500	1500	1500	1500	1500
825	1500	1500	1500	1500	1500	1500	1500	1500
900	1800	1800	1800	1800	1800	1800	1800	1800	1800
975	1800	1800	1800	1800	1800	1800	1800	1800	1800	1800
1050	1800	1800	1800	1800	1800	1800	1800	1800	1800	1800	1800
1200	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400
1350	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400
1500	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400
1650	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000
1800	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000
1950	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000
2100	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600
2250	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600
2400	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600

Pipe Size	300	375	450	525	600	675	750	825	900	975	1050	1200	1350	1500	1650	1800	1950	2100	2250	2400
300	1200
375	1200	1200
450	1200	1200	1200
525	1200	1200	1200	1200
600	1200	1200	1200	1200	1200
675	1500	1500	1500	1500	1500	1500
750	1500	1500	1500	1500	1500	1500	1500
825	1500	1500	1500	1500	1500	1500	1500	1500
900	1800	1800	1800	1800	1800	1800	1800	1800	1800
975	1800	1800	1800	1800	1800	1800	1800	1800	1800	1800
1050	1800	1800	1800	1800	1800	1800	1800	1800	1800	1800	1800
1200	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400
1350	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400
1500	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400	2400
1650	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000
1800	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000
1950	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000
2100	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600
2250	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600
2400	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600	3600

Knockouts for small diameter pipe leads 300mm and smaller can be provided in addition to what is shown.
All dimensions are in millimeters unless otherwise shown
Determine all degrees of separation between each set of pipes.
If an angle measured does not correspond to any of the tables then round down the angle to the nearest corresponding table.
Take each set of pipes and their corresponding angle of separation then compare them to their appropriate table.
The largest size of MH will govern – Table is based on OPSD 701.021 (Nov 2014 Rev #4)
